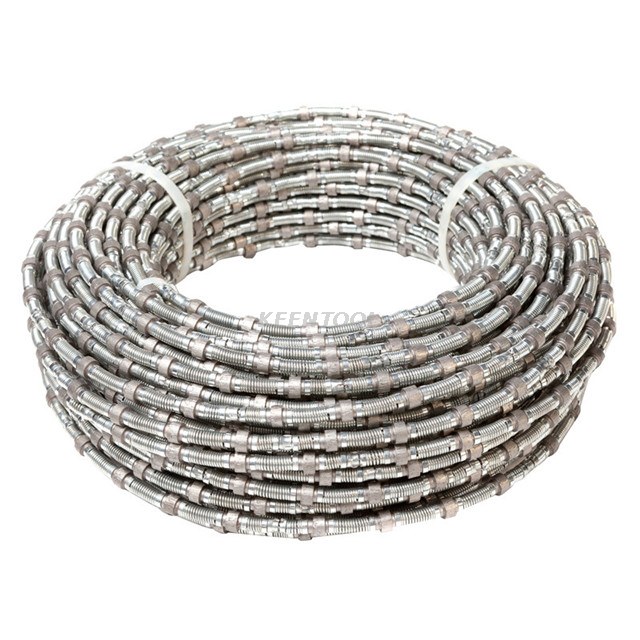

Wet or Dry Cutting Spring Diamond Wire for Marble Limestone Travetine Quarry Cutting
| Quantity: | |
|---|---|
-
ROC-MQ115S
-
KEENTOOL
-
82029910
Diamond wire saw used for marble quarry which can greatly enhance the exploiting efficiency, it can be used for great area marble quarries cutting and greatly increase the recovery rate of marble quarry.

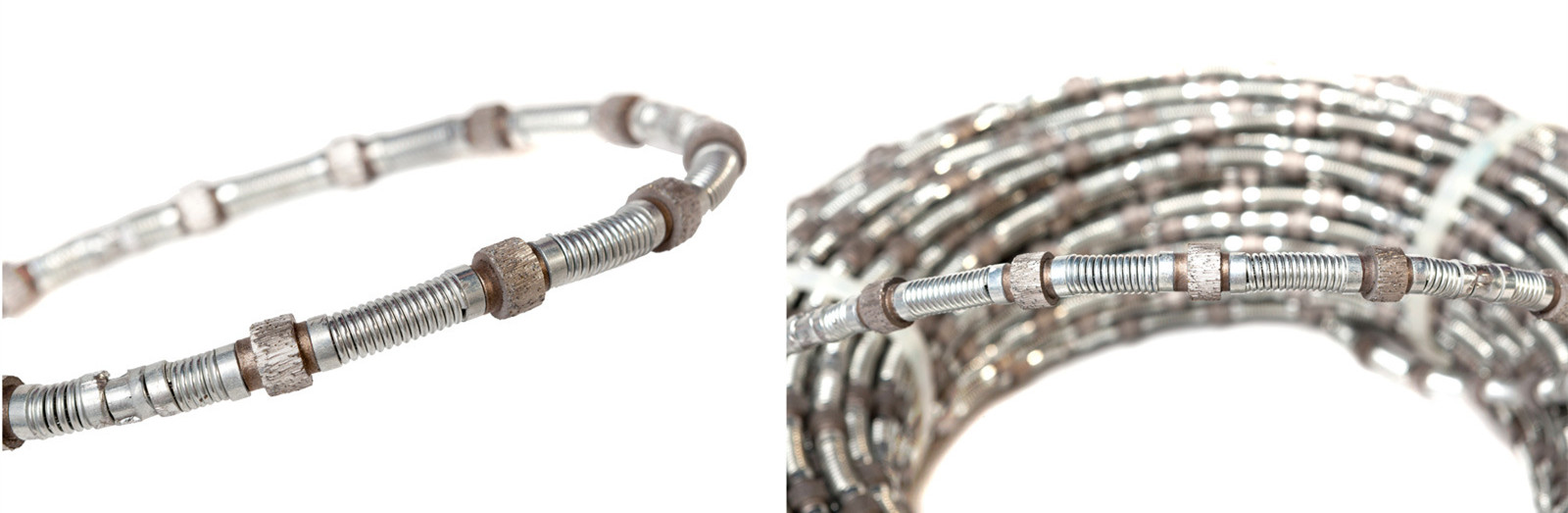

The spring diamond wire saw developing by KEENTOOL with features of:
KEENTOOL studies the marble material to be extracted to design the best bond, number of beads per meter;
KEENTOOL wire use the top quality steel cable from Germany
KEENTOOL use the durability spare parts to make sure the life time of wire
KEENTOOL specially developed the bond with super quality diamond of beads for dry cutting of marble/limestone and travertine with no water.
APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
For all carbonate stone WET cutting in quarry | ¢11.5×6.5/6.0 | 26/28 | Spring | |
ROC-MQ115R | ¢11.5×6.5/6.0 | 37 | Rubber/Plastic+Spring | |
ROC-MQ110S | ¢11.0×6.5/6.0 | 26/28 | Spring | |
ROC-MQ110R | ¢11.0×6.5/6.0 | 37 | Rubber/Plastic+Spring | |
ROC-MQ105S | ¢10.5×6.5/6.0 | 26/28 | Spring | |
ROC-MQ105R | ¢10.5×6.5/6.0 | 37 | Rubber/Plastic+Spring | |
Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life (M2/M) | |
Soft | 35-45 | 15-20 | 80-100 | |
Medium | 35-40 | 8-16 | 60-80 | |
Hard | 30-35 | 6-10 | 50-70 | |
SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
¢11.5 | 6.5/6.0 | 11 | Sintered | |
¢11.0 | 6.5/6.0 | 11 | Sintered | |
¢10.5 | 6.5/6.0 | 11 | Sintered |
APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
For DRY cutting of all carbonate stone in quarry | ROC-MQ115D | ¢11.5×6.0 | 26/28 | Spring |
ROC-MQ110D | ¢11.0×6.0 | 26/28 | Spring | |
ROC-MQ105D | ¢10.5×6.0 | 26/28 | Spring | |
Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life (M2/M) | |
Soft | 35-45 | 9-14 | 70-90 | |
Medium | 35-40 | 7-12 | 50-70 | |
Hard | 30-35 | 5-9 | 40-60 | |
SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
¢11.5 | 6.0 | 11 | Sintered | |
¢11.0 | 6.0 | 11 | Sintered | |
¢10.5 | 6.0 | 11 | Sintered |
