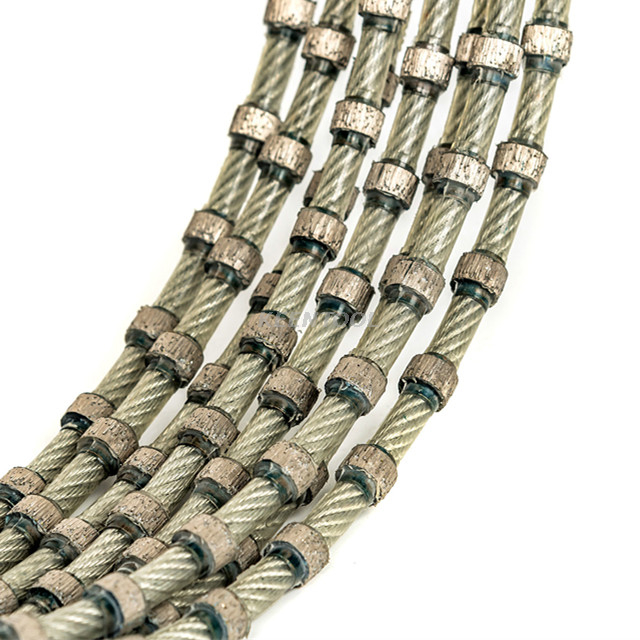

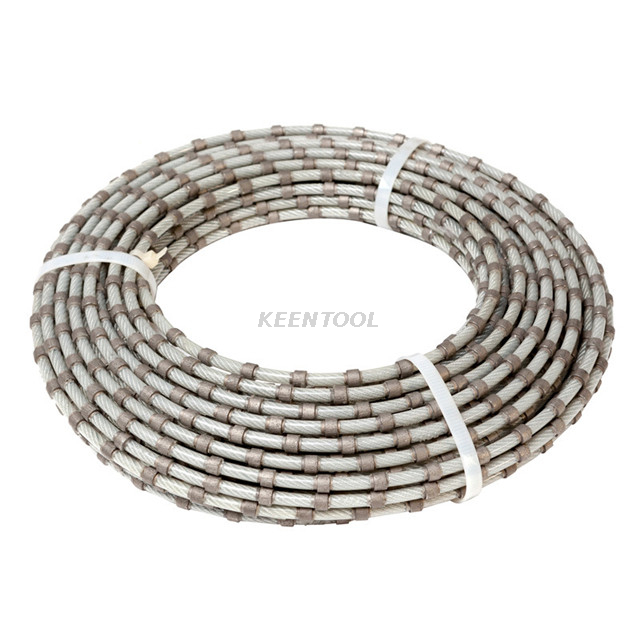

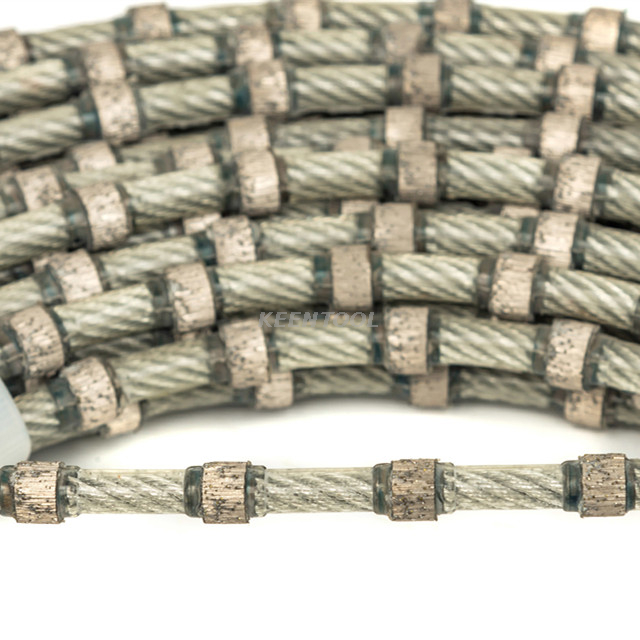

Plastic Injection Mono Diamond Wire for Blocks Cutting Slabs Sawing and Profiling
| Quantity: | |
|---|---|
-
ROC-GS110P
-
KEENTOOL
-
82029910
Usually plastic diamond wire saw is used on Mono and CNC wire saw machines, for blocks squaring, slabs sawing and profiling of marble, granite and other stone blocks.
The plastic injection diamond wire has been widely introduced in stone factory, with advantages as below:
The diamond wire allows for cutting the large size block
Thinner cutting slot and more precise to increase output from block;
By virtue of its reliability, adjust the cutting techniques according to different stone material;
Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques and less pollution
APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
For all type of natural and artificial stone | ROC-GS110P | ¢11.0×6.0 | 37BPM | BASF Plastic |
ROC-GB105P | ¢10.5×6.0 | 37BPM | BASF Plastic | |
ROC-GB90P | ¢9.0×6.0 | 37BPM | BASF Plastic | |
ROC-GB85P | ¢8.5×6.0 | 37BPM | BASF Plastic | |
ROC-GB75P | ¢7.5×6.0 | 37BPM | BASF Plastic | |
Cutting Material | Linear Speed (M/S) | Down Speed (CM/H) | Cutting Life (M2/M) | |
Soft | 70-100 | 18-45 | ||
Medium | 28-32 | 50-80 | 14-40 | |
Hard&Abrasive | 28-32 | 30-50 | 8-30 | |
SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
¢11.0 | 6.0 | 11 | Sintered | |
¢10.5 | 6.0 | 11 | Sintered |
KEENTOOL Diamond Wire with Features as below:
Keentool studies the material to be cut to design the best bond, number of beads per meter;
Use the top quality steel cable from Germany;

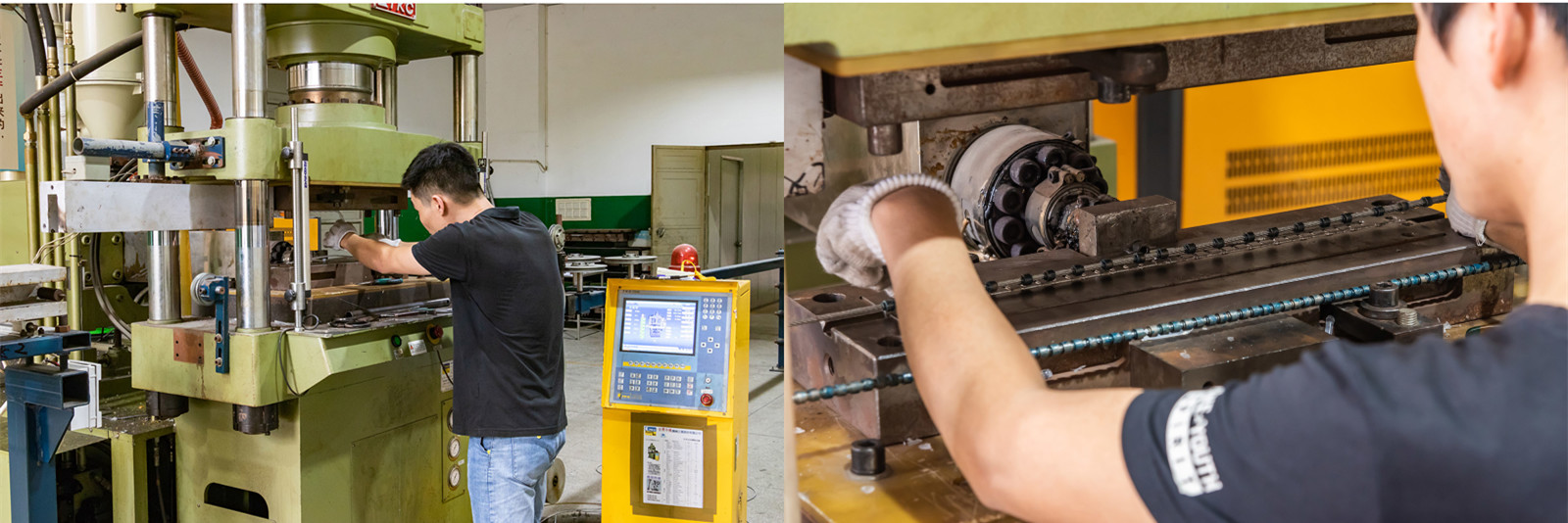

Use the Bayer or BASF plastic grains from Germany, and the most advanced plastic injection equipment and system to make sure our diamond wire can work with stable performance till the end.
