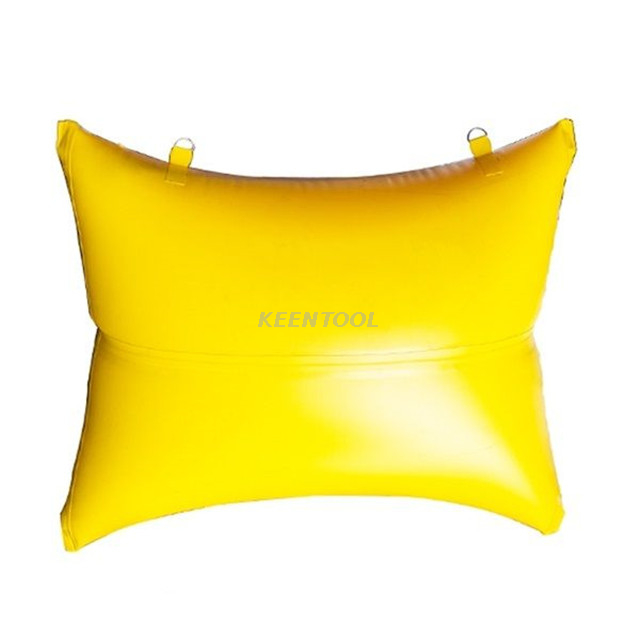

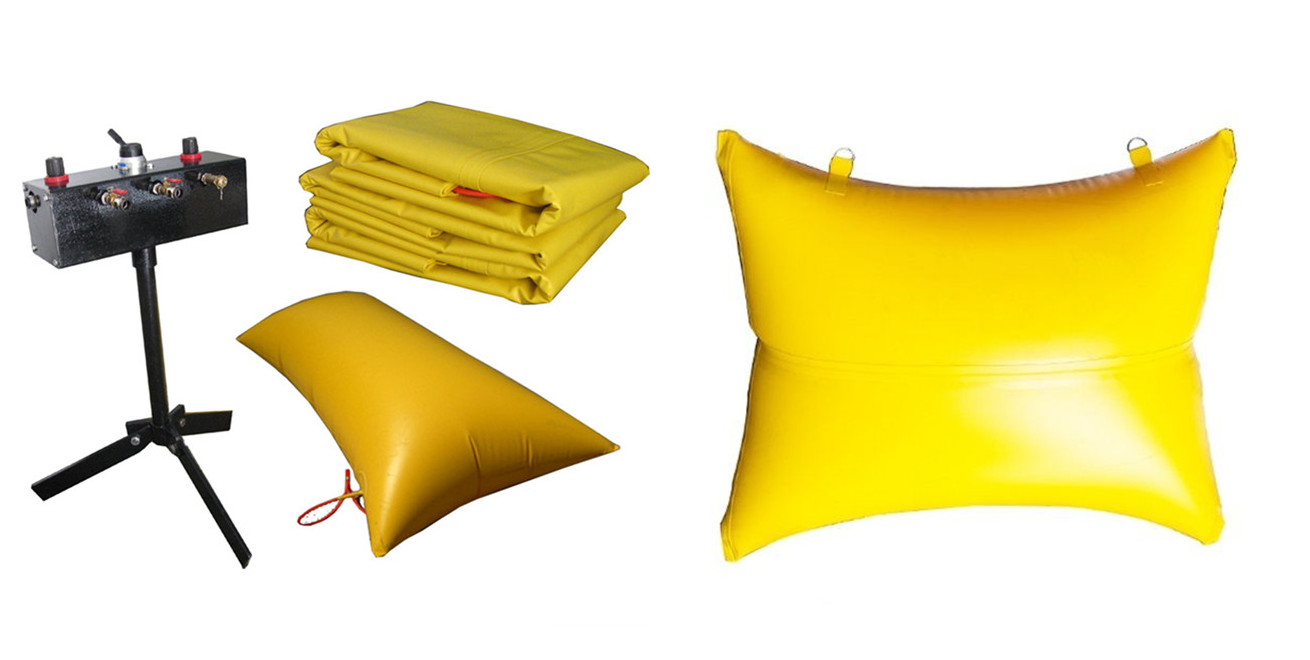

Durable Long Lifespan Air Pushing Bag for Blocks Breaking in Stone Quarry
| Quantity: | |
|---|---|
-
KT_APB
The Air Bag is manufactured with high-tech materials and processed by special techniques,, with very low rate of problem in split and damage. It performs well and becomes very good solution for block splitting after wire saw cutting in natural stone mining with high efficiency and low costs.
| Specification (mm) | Pushing Power (Ton) |
| 500 x 500 | 15 |
| 500 x 1000 | 25 |
| 1000 x 1000 | 50 |
| 1000 x 1500 | 75 |
| 1000 x 2000 | 100 |
| 1500 x 1500 | 115 |
| 1500 x 2000 | 150 |
| 1800 x 1800 | 165 |
| 1800 x 2000 | 180 |
| 2000 x 2000 | 200 |
| 2000 x 2200 | 220 |
Operation Steps of the Stone Pushing Air Bag:
Carefully clear debris from block clearance.
Choose suitable sizes and quantity of air pushing bags according to block sizes.

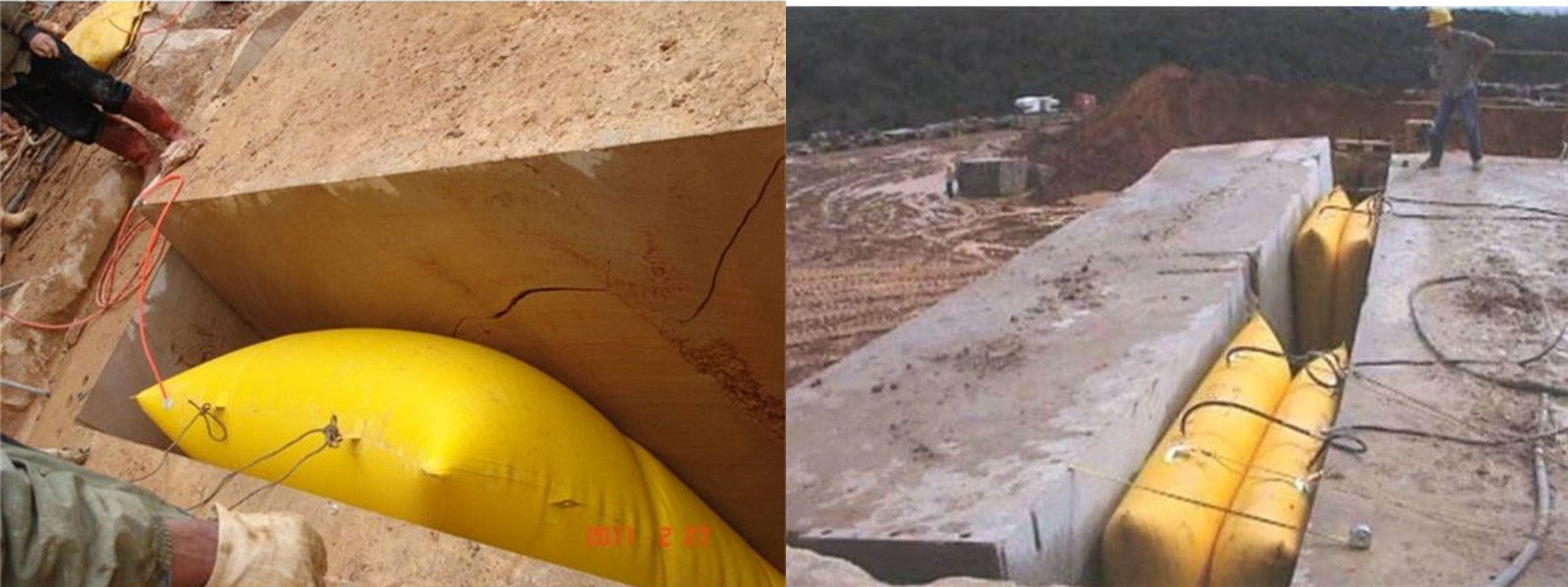

Choose best acting point,place air pushing bag into gap entirely, fix it with ropes or steel rod through handle rings of the bag.

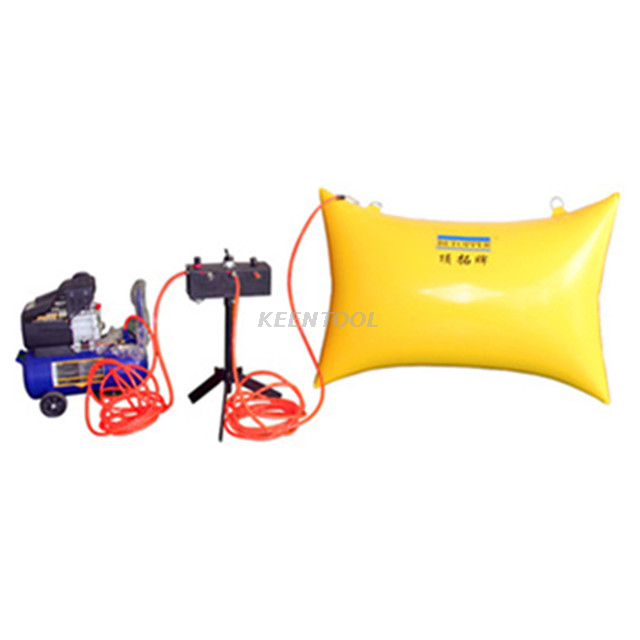

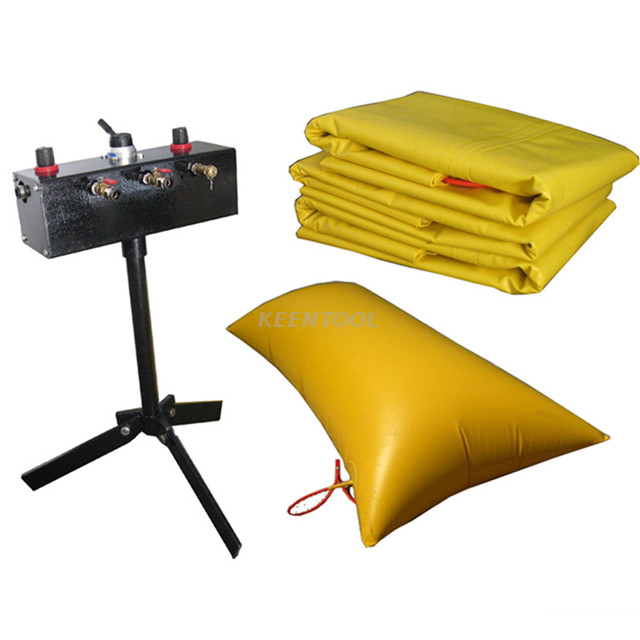

Connect air compressor,controller and air pushing bag.
Inflating air pushing bag by air compressor and keep air pressure stable at 0.3Mpa - 0.4Mpa
Continue inflating until obtaining opening of 5-10cm gap, place appropriate stones to the gap.
Overlap two same sizes air pushing bags to overturn the block.
Stop inflating, take out air pushing bag after deflating by quick air bleed-valve.
