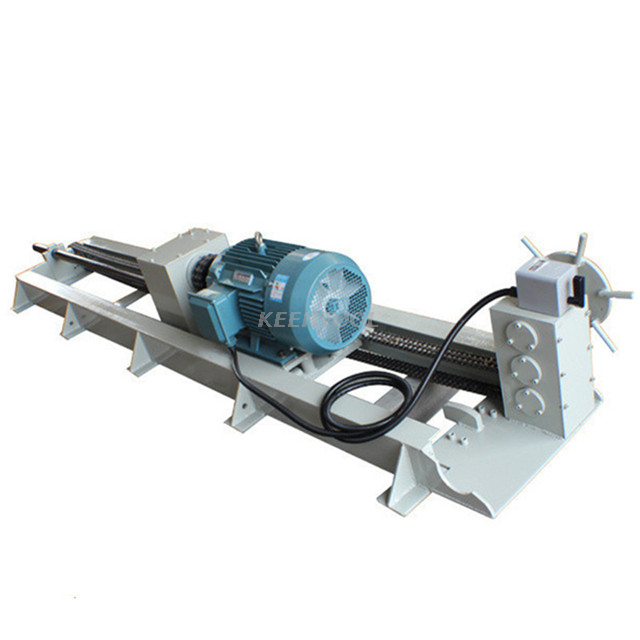

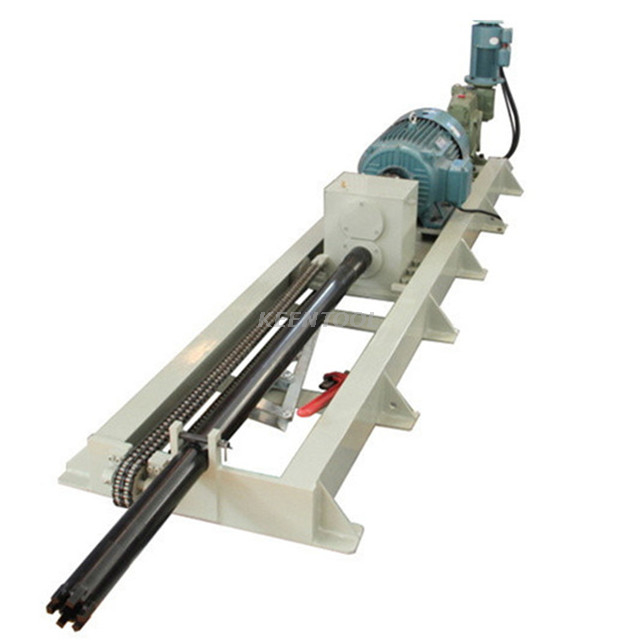

11KW 15KW Manual or Single Inverter Stone Quarry Horizontal Core Drilling Machine
| Quantity: | |
|---|---|
-
LQ-HZ-11KW/15KW
-
KEENTOOL

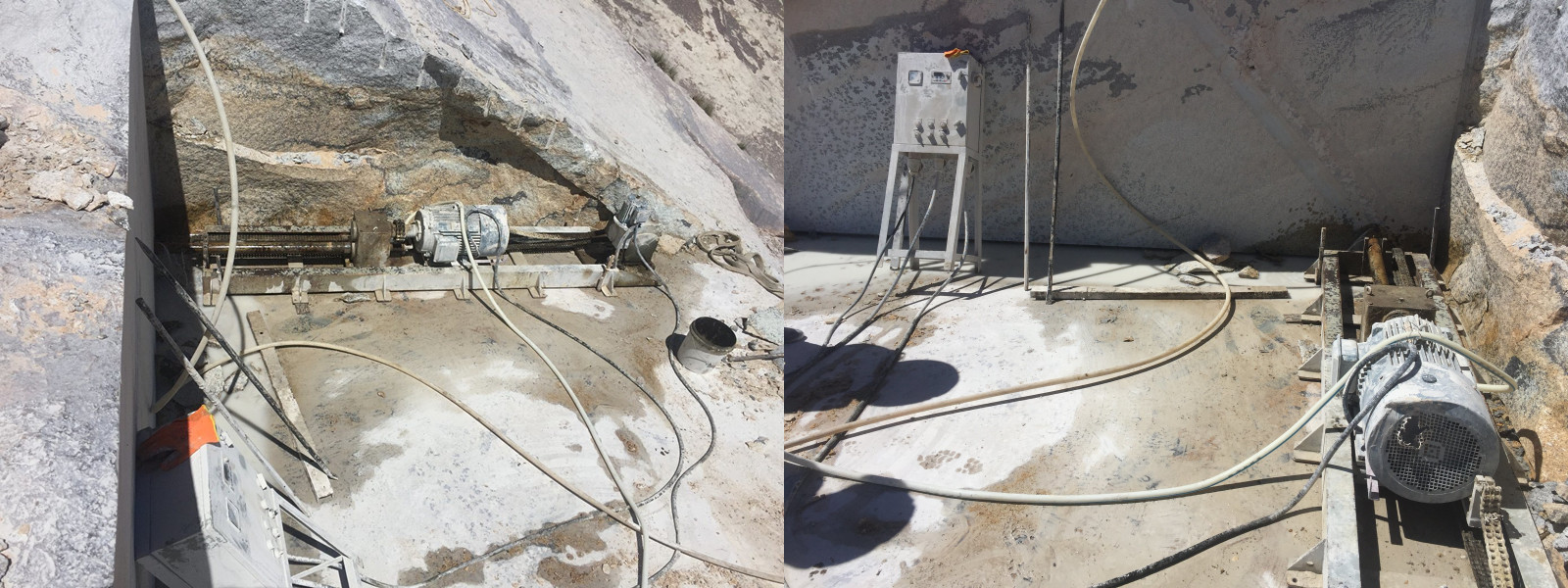

Horizontal core drilling machine is mainly used for perforation work in natural stone mine. It can be used to drill the cross wire holes in horizontal direction for introducing diamond wire.
The machine with advantages of easy operation, high accuracy with small deviation and easy converge, low costs.
We mainly developing 11kw or 15kw horizontal core drilling machine, both manual operation and single inverter driven can be selected.
| Model | Main power | Drill speed | Max drill depth | Single advance stroke | Rotation device | Advance device |
| LQ-HD-11 | 11KW | 1.5-5 M/H | 25-30M | 1.5M | Motor+Reducer | Chain+Reducer |
| LQ-HD-15 | 15KW | 2-6 M/H | 30-40M | 1.5M | Motor+Reducer | Chain+Reducer |
