Screw and Portable Air Compressor for Stone Quarry Use
| Quantity: | |
|---|---|

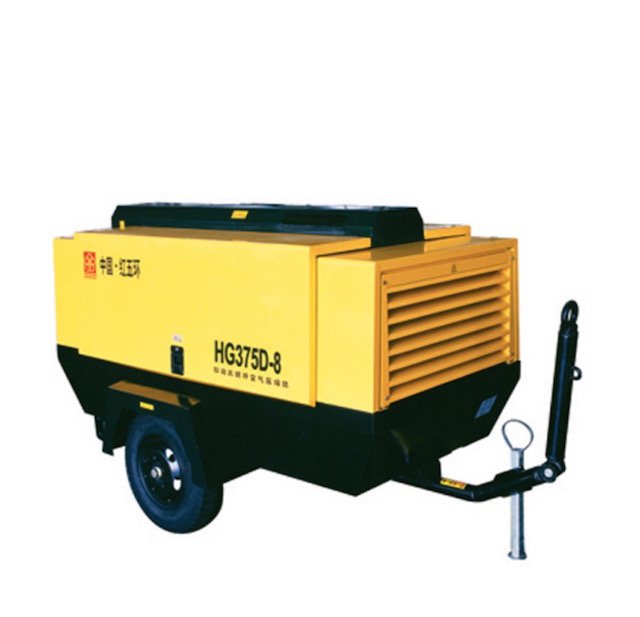

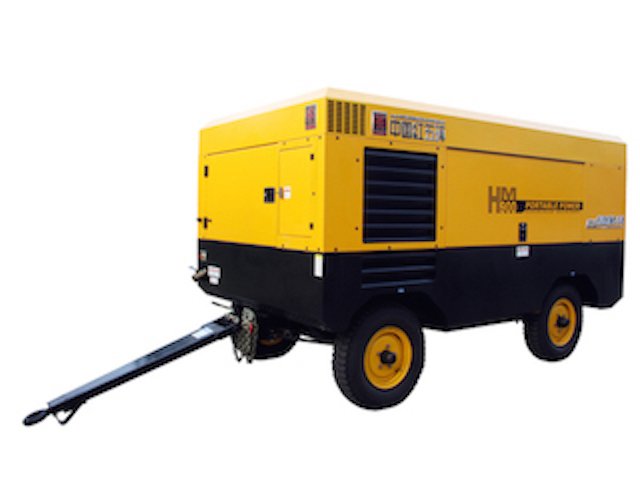

Diesel-engine Portable Screw Air Compressors are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others. Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m³/min, and the discharge pressure amounts up to 2.5 MPa.
Model | Working Pressure | Capacity | Diesel Engine Model | Diesel Engine Power | Weight | Dimension | |
bar | m³/min | kw | hp | kg | mm | ||
LGCY-9/7 | 7 | 9.00 | YUCHAI - YC4D95Z-K20 | 71.3 | 95 | ||
LGCY-10/7 | 7 | 10.00 | 1900 | ||||
LGCY-10/10 | 10 | 10.00 | CUMMINS - 4BTA3.9-C125 | 93.8 | 125 | 3900*1920*1900 | |
LGCY-8.5/14 | 14 | 8.50 | |||||
LGCY-12/7 | 7 | 12.00 | 2050 | 3900*1980*1900 | |||
LGCY-12/7A | 7 | 12.00 | YUCHAI - YC4A125Z-T10 | 4000*1940*1900 | |||
LGCY-9/14 | 14 | 9.00 | YUCHAI - YC6B150Z-K20 | 112.5 | 150 | 2380 | 4080*1980*2350 |
LGCY-10/13 | 13 | 10.00 | |||||
LGCY-12/10 | 10 | 12.00 | |||||
LGCY-12/10Q | 10 | 12.00 | QUANCHAI - QC6108ZG | ||||
LGCY-12/12 | 12 | 12.00 | CUMMINS - EQ6BT5.9-C160 | 120.0 | 160 | ||
LGCY-12/13 | 13 | 12.00 | CUMMINS - 6BTA5.9-C180 | 135.0 | 180 | 2500 | |
LGCY-13/13 | 13 | 13.00 | 2750 | 3450*1520*2220 | |||
LGCY-13/13A | 13 | 13.00 | YUCHAI - YC6A180Z-T21 | ||||
LGCY-15/13 | 13 | 15.00 | STEYR - WD415.23 | 180.0 | 240 | 3350 | 3380*1650*2500 |
LGCY-15/13A | 13 | 15.00 | YUCHAI - YC6A240-20 | ||||
LGCY-17/7 | 7 | 17.00 | CUMMINS - 6BTA5.9-C180 | 135.0 | 180 | 3050 | 3380*1640*2350 |
LGCY-13/17 | 17 | 13.00 | CUMMINS - 6CTA8.3-C215 | 161.3 | 215 | 2380 | 3780*1980*2350 |
LGCY-16/13 | 13 | 16.00 | 3700 | 3980*1800*2450 | |||
LGCY-17/14.5 | 14.5 | 17.00 | CUMMINS - 6CTA8.3-C260 | 195.0 | 260 | ||
LGCY-18/17 | 17 | 18.00 | |||||
LGCY-22/8 | 8 | 22.00 | 4000 | 4580*1950*2600 | |||
LGCY-22/14 | 14 | 22.00 | YUCHAI - YCM340L-K20 | 255.0 | 340 | 4500 | |
LGCY-22/14K | 14 | 22.00 | CUMMINS - 6LTAA8.9-C325 | 243.8 | 325 | ||
LGCY-27/10 | 10 | 27.00 | YUCHAI - YC6M340L-K20 | 255.0 | 340 | 5000 | 4600*1950*2850 |
LGCY-32/10 | 10 | 32.00 | YUCHAI - YC6M395L-K20 | 296.3 | 395 | ||
LGCY-14/12 | 12 | 14.00 | CUMMINS - 6BTA5.9-C180 | 135.0 | 180 | 3250 | 3980*1800*2100 |
LGCY-26/10 | 10 | 26.00 | CUMMINS - 6LTAA8.9-C360 | 270.0 | 360 | 4500 | 4600*1950*2850 |
LGCY-30/17 | 17 | 30.00 | YUCHAI - YC6M395L-K20 | 296.3 | 395 | 4850 | |
Please contact us for further information. | |||||||
