Double Blade Stone Cutting Machine For Quarry Working
| Quantity: | |
|---|---|
-
LQ1360/1900-3600
-
KEENTOOL

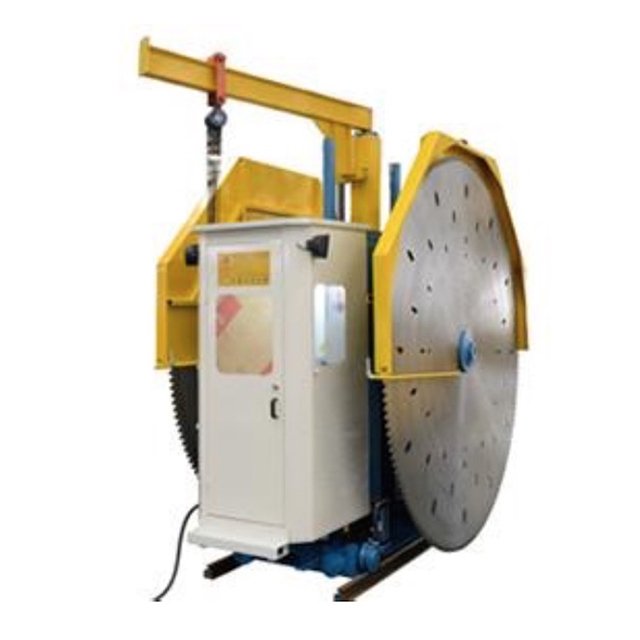

Double blade stone cutting machine has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

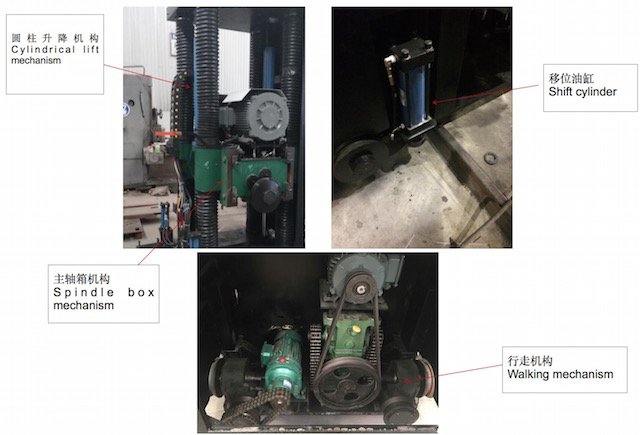

The cylindrical guide rail of Double Blade stone cutter is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
The dual blade cutter has Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
With the super giant saw blades, Double Blade Mining Cutter can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Name | Unit | LQ1360/1900-3600 |
Diameter of blade | mm | φ2200*2-φ3600*2 |
Scope of cutting depth | mm | 850-1500 |
Scope of cutting width | mm | 1360-1900 |
Water consumption | m3/h | 5 |
Power of main-drive | kw | 45*2 |
Total power | kw | 98.5 |
Center distance of rail | mm | 1140 |
Overall dimension (L*W*H) | mm | 3550*1450*2850 |
Approximate weight | kg | 7500 |
Name | Unit | LQ-1950/2450 |
Diameter of blade | mm | φ2200*2-φ4800*2 |
Scope of cutting depth | mm | 1050-2250 |
Scope of cutting width | mm | 1950-2450 |
Water consumption | m3/h | 5 |
Total power | kw | 98.5~118.5 |
Center distance of rail | mm | 1670 |
Overall dimension (L*W*H) | mm | 5200*2100*3600 |
Approximate weight | kg | 11000 |
Double blade stone cutting machine has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
The cylindrical guide rail of Double Blade stone cutter is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
The dual blade cutter has Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
With the super giant saw blades, Double Blade Mining Cutter can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Name | Unit | LQ1360/1900-3600 |
Diameter of blade | mm | φ2200*2-φ3600*2 |
Scope of cutting depth | mm | 850-1500 |
Scope of cutting width | mm | 1360-1900 |
Water consumption | m3/h | 5 |
Power of main-drive | kw | 45*2 |
Total power | kw | 98.5 |
Center distance of rail | mm | 1140 |
Overall dimension (L*W*H) | mm | 3550*1450*2850 |
Approximate weight | kg | 7500 |
Name | Unit | LQ-1950/2450 |
Diameter of blade | mm | φ2200*2-φ4800*2 |
Scope of cutting depth | mm | 1050-2250 |
Scope of cutting width | mm | 1950-2450 |
Water consumption | m3/h | 5 |
Total power | kw | 98.5~118.5 |
Center distance of rail | mm | 1670 |
Overall dimension (L*W*H) | mm | 5200*2100*3600 |
Approximate weight | kg | 11000 |
